Industrial engineers/equipment manufacturers, take a look! Loose PCB connection, poor waterproofing, slow installation? This socket can solve the problem in 3 steps!
A quick overview of the 3 core advantages

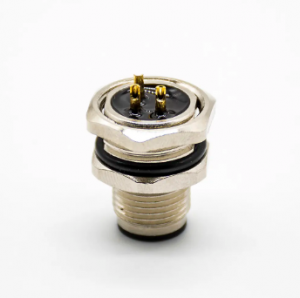

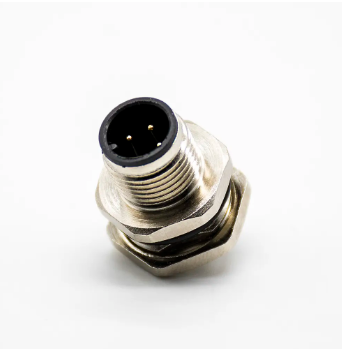

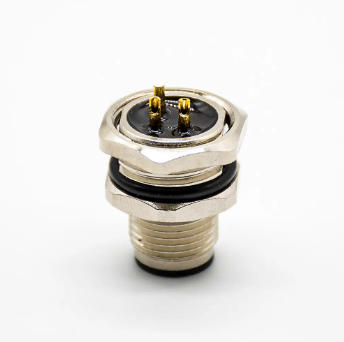

Thread locking and vibration prevention: M12×1 thread + metal nut, 20N・m torque is not loose, vibration displacement <0.1mm, robot joint/machine tool spindle high-frequency vibration scene “welding level” stable;
IP67 double waterproof: double-layer sealing ring is not leaking for 30 minutes at 1 meter underwater, -40℃~+85℃ wide temperature and weather resistance, outdoor equipment rain, food machinery humid environment fully adapted;
30 seconds fast installation: A code 3 pin plug and play, 180° right-angle solder feet fit PCB, solder feet spacing ±0.05mm positioning accuracy, wave soldering one-time molding, efficiency is 70% faster than traditional!
4 major scenarios with rigid needs
Industrial automation: PLC and sensor connection, anti-cutting fluid corrosion, 24-hour trouble-free operation; Smart devices: IoT gateway PCB board, compact design saves space, plug-and-play accelerates product iteration; Medical equipment: internal connection of monitor, RoHS compliance + sterilization resistance, to ensure medical-grade safety; Outdoor equipment: solar controller, -40℃ low temperature start, continuous signal in heavy rain environment.
Certification + customization double guarantee
ISO/UL/IP67 certified, RoHS/REACH compliant, worry-free export;
12 materials/performance options, support customized solder leg length and nut color, 72-hour proofing.
Visit [https://www.gzdiweiconnector.com/m12-male-socket-a-code-3-pin-180-pcb-installation-rear-mount-fastening-waterproof-connector-product/] to obtain technical documents and quotes,The professional team will provide you with a one-stop solution!
Post time: May-15-2025
